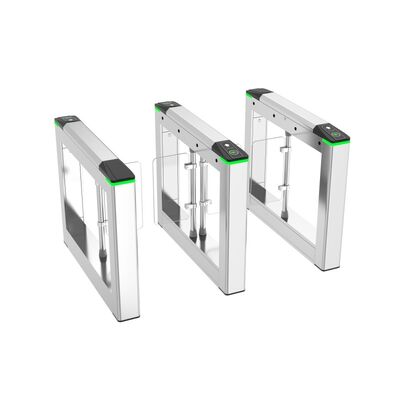

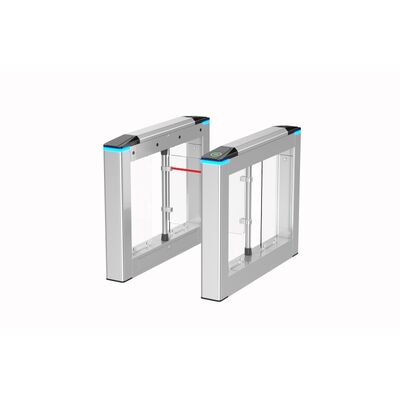

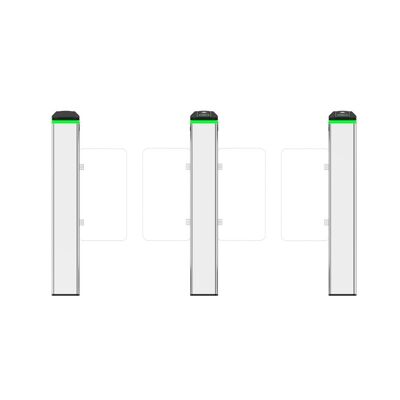

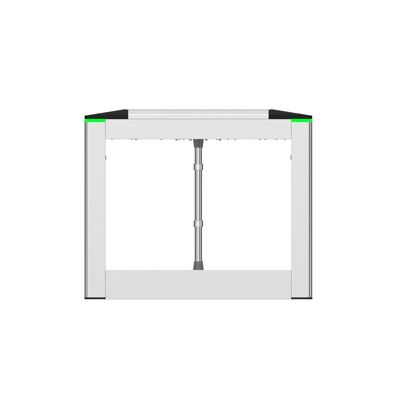

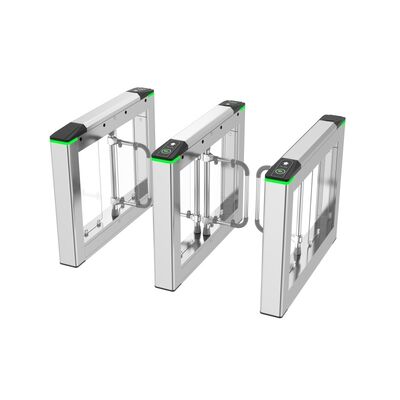

Automatic Access Control RFID Anti-Tailgating Swing Barrier Turnstile

Nome da marca:	AnKuai
Número do modelo:	AKT326
MOQ:	1
Condições de pagamento:	T/T

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

China

Certificação:

CE, ISO

Nome do produto:

barreira de catraca giratória

TAMANHO:

1200*150*980mm

fonte de energia:

C.A. 110~220V, 50/60Hz

Largura da passagem:

≤950 mm

Comprimento do braço:

≤600 mm

Aberto/próximo tempo:

infravermelho:

4 pares

Material de habitação:

Aço inoxidável SUS304

Garantia:

12 meses

Preço:

Negotiate

Habilidade da fonte:

10000 Peixes/Mês

Destacar:

RFID swing barrier turnstile

automatic anti-tailgating turnstile

access control swing barrier

Descrição do produto

High-Stability, Multi-Function Swing Turnstile for Smart Access

Compatible with ID/IC Card, Barcode, Fingerprint & Face Recognition | -25~75℃ Wide Temperature Adaptation

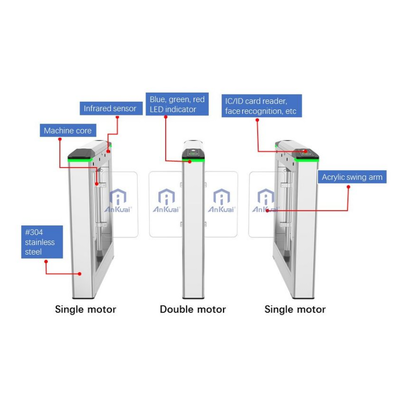

Core Features

Problem-Self-Checking

Automatically detects equipment faults and sends prompts, simplifying maintenance and reducing downtime.

Bi-Directional Arm Turning

Supports two-way passage, with adjustable direction settings to meet different site management needs.

Power-Off Safety Design

Arm opens automatically when power is cut off (meets fire safety standards) and locks automatically when power is restored.

Anti-Rush Protection

Arm locks tightly when no open signal is received, preventing unauthorized forced entry.

Adjustable Delay Close

After valid card reading and passenger passage, arm close delay can be set from 1-60s via the control panel.

Auto-Reposition

If the passenger does not pass within the set time after card reading, the system automatically cancels the passage permission.

Technical Specifications

Parameters	AKT326 Swing Barrier Turnstile
Power Supply	AC 110~220V (Working Power: DC24V)
Power Consumption	DC24V 40W
Working Temperature	-25℃ ~ 75℃
Relative Humidity	<95%, No Condensation
Passage Width	≤950 mm
Passing Speed	30 persons/min (Normal Open); 20 persons/min (Normal Close)
Arm Open/Close Time	1s
Input Interface	+12V Electrical Signal or Impulse Signal (Width >100ms, Drive Current >10mA)
Communication Interface	RS485 (Distance ≤1200m), TTL232

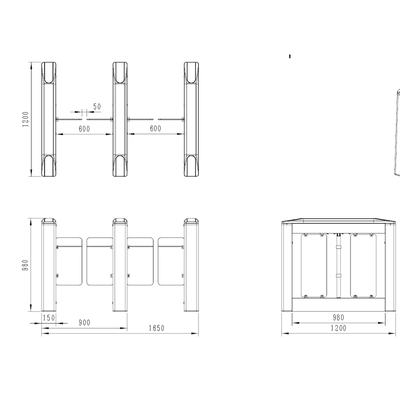

Dimension (L×W×H)	1200×150×980 mm
Controlling Way	Relay Signal, RS485

Where to Use AKT326?

Office Buildings

Manage employee access, ensure office security

Industrial Parks

Control staff and visitor entry, prevent unauthorized access

Residential Communities

Guarantee resident safety, manage visitor flow

Transport Hubs

Efficient passenger passage, integrate with ticket systems

Our Company Advantages

Advanced Production Workshop

R&D History

Active Exhibition Participation

Company Introduction

Global Sales Cases

Shipping Methods

After-Sales Service

✓ Quality Guarantee: 12-month warranty for the whole machine (excluding consumables)
✓ Technical Support: 24/7 online support via email or phone
✓ Installation Guidance: Provide detailed installation manual and video tutorials
✓ Spare Parts Supply: Stable supply of original spare parts for long-term maintenance

Frequently Asked Questions

Can AKT326 integrate with face recognition devices?

Yes. The AKT326 has a standard electrical interface, which can be easily connected to face recognition, fingerprint, and other biometric devices to realize multi-mode access control.

Is the AKT326 suitable for outdoor use?

Yes. With 304/316 stainless steel material and wide temperature adaptation (-25~75℃), it can be used outdoors. For heavy rain areas, we recommend matching it with a rain shelter to extend service life.

How to adjust the arm close delay time?

You can set the delay time (1-60s) directly through the control panel of the AKT326. The user manual provides detailed operation steps, or our technical team can guide you remotely.

What is the delivery time for AKT326?

For standard models (304 stainless steel, straight arm), the delivery time is 5-7 working days. For customized models (special material, color, arm shape), it takes 10-15 working days.
